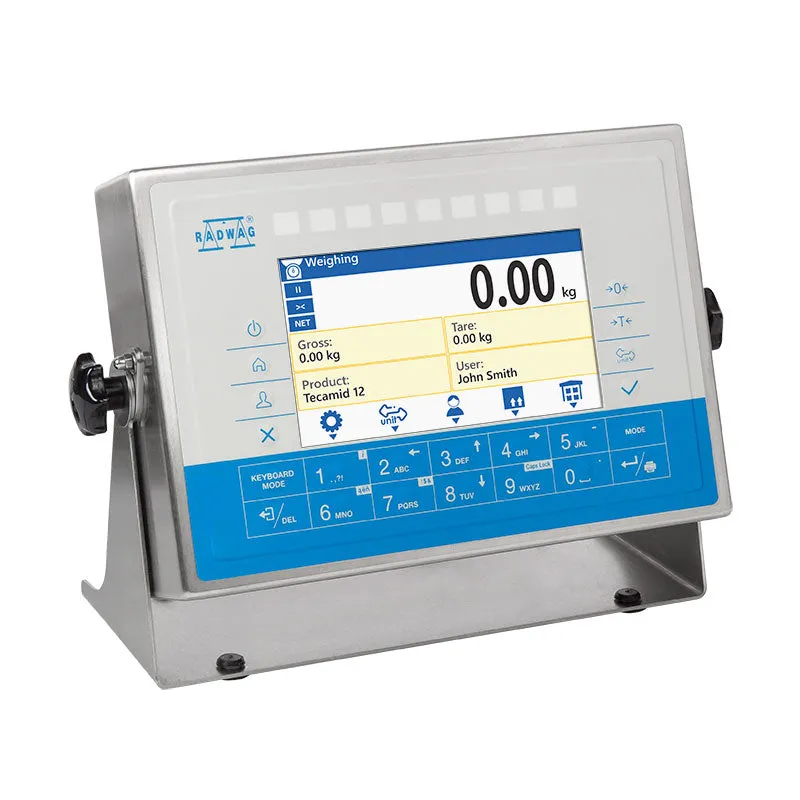

PUE HX7 terminal is a constructional component of industrial multifunctional load cell scales, equipped with either one or numerous load cells. It is based on the latest solutions and an advanced computing platform. Versatile terminal’s software will satisfy even the most demanding users and system integrators. The basic version of the terminal features a vast range of communication interfaces, which range can additionally be expanded.
Housing
The housing, made of AISI 304 stainless steel, ensures high ingress protection, IP66 / IP68. The terminal is equipped with 7” colour LCD display and membrane keyboard. Ease of operation, clear menu and intuitive information arrangement on the display guarantee comfort of operation. Hermetic communication interface connectors are located on the back side of the housing. Stable mount bracket enables to mount the terminal either on a flat horizontal surface or on the wall. The device tilt can be easily adjusted.
